Dual clocked CV generator/recorder

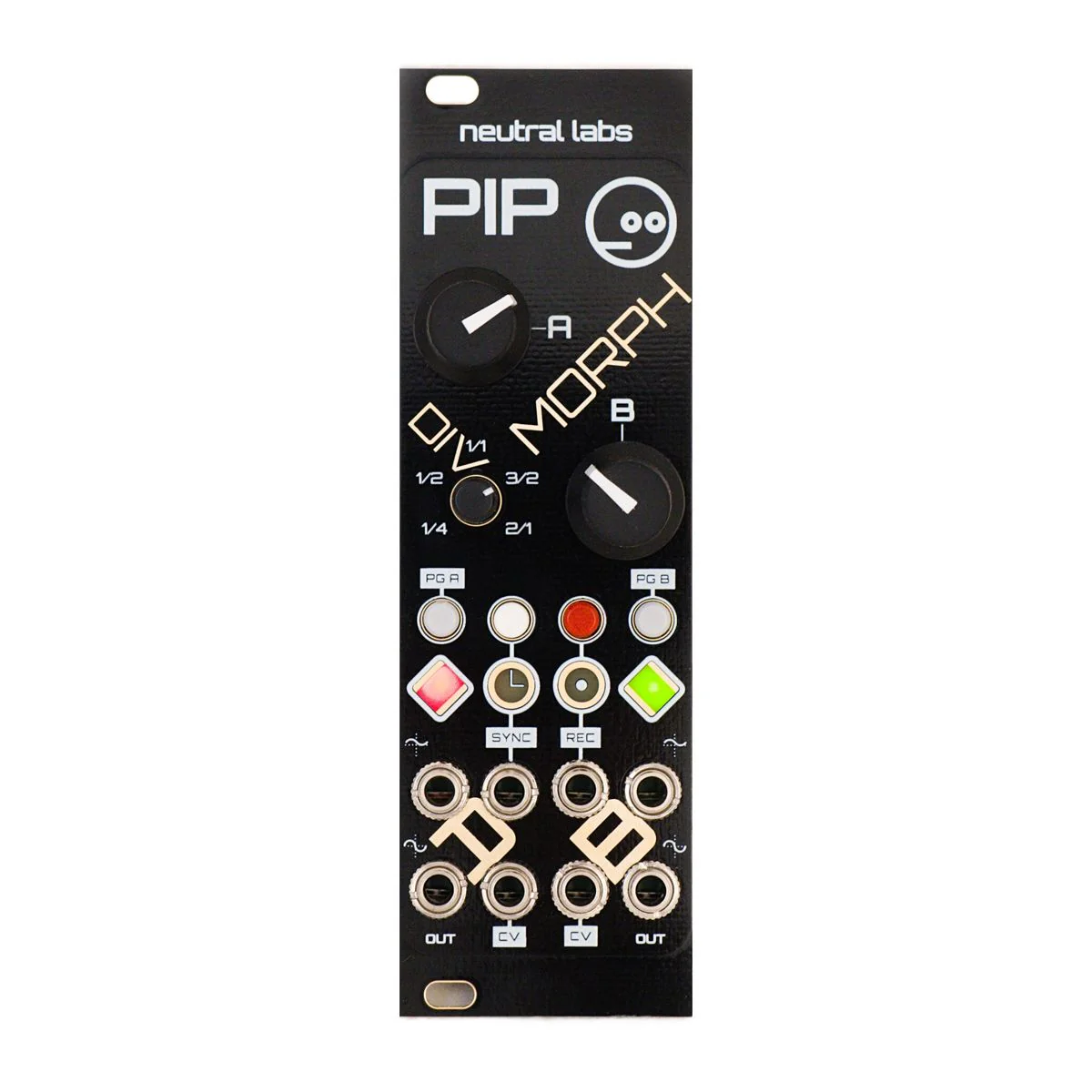

PIP is a dual clocked CV generator and recorder/complex LFO that lets you morph between predefined CV waveforms and even morph your recorded CV.

PIP simultaneously generates two CV waveforms, one per channel. Channel B is the master channel and it is synced to an internal or external clock. The clock of channel A depends on that of channel B: You can either set a fixed clock division, a free (arbitrary) ratio or you can adjust the phase relationship between channel B and channel A.

The waveforms are arranged into rows and pages (PG). Each channel has 16 wavetable pages with 3 waveforms per page that can be morphed into each other using the MORPH knobs. In addition, each channel has a special random (sample&hold/sample&glide) page.

It is possible to record incoming CV or knob movements onto each channel. The recorded waveform replaces the middle waveform of the current page and can then be morphed as well.

Features:

• Preset waveforms with morphing
• Phase shifting between LFOs
• Predefined or arbitrary ratios
• Tap tempo
• External sync input
• Record, morph, and time-stretch knob movements or
• Record, morph, and time-stretch external CV
