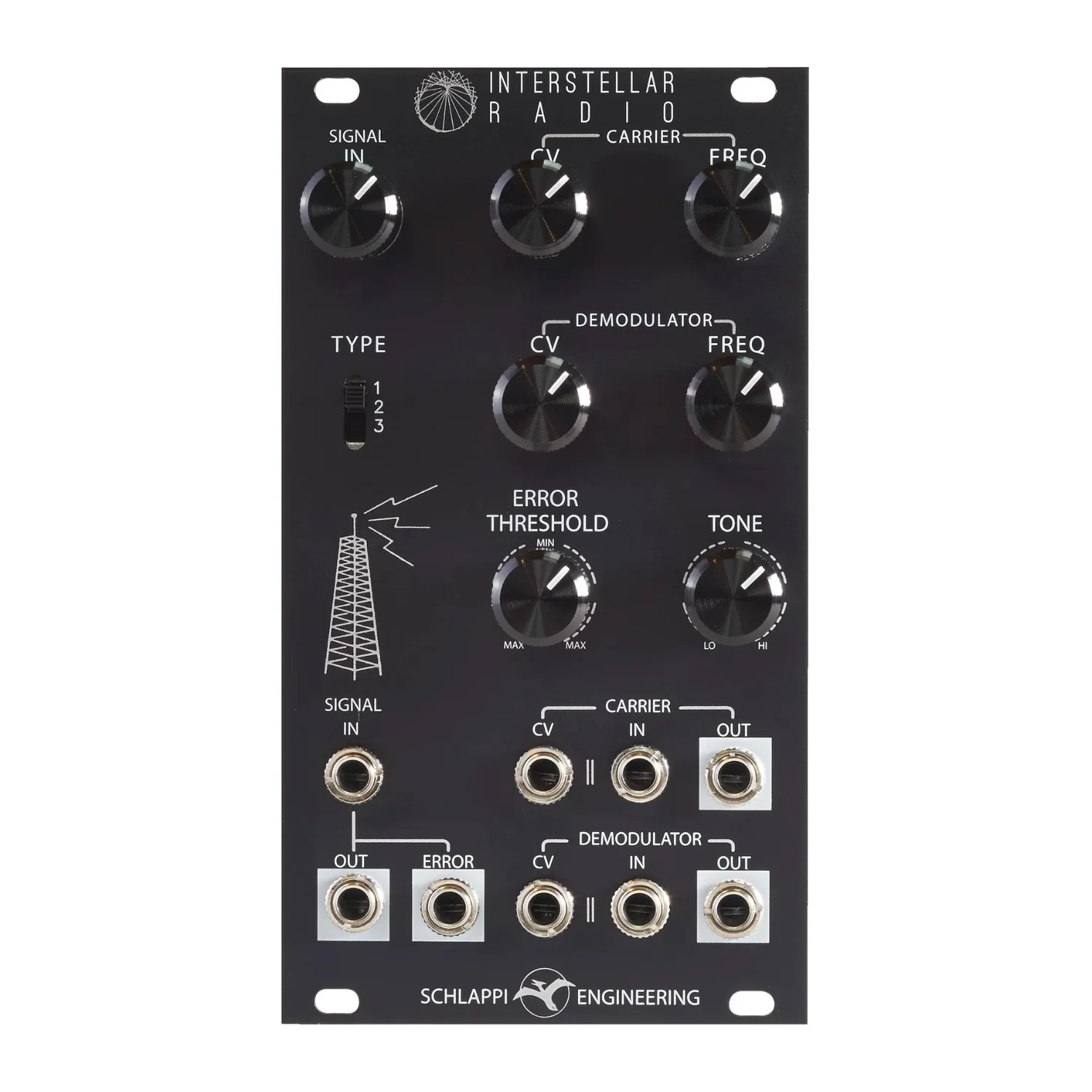

The Interstellar Radio is a destructive transmission line. It modulates and demodulates a signal with different clock references which results in extreme distortions and frequency modulation of complex and noisy timbres.

Features:

• Simulates the process of modulating and demodulating a signal for radio transmission
• Effect or complex oscillator (non v/oct)
• Voltage controlled aliasing, distortion, and frequency modulation effects
• Two wide ranging voltage controlled square wave oscillators with individual outputs
• CARRIER oscillator converts input into high frequency pulse train
• DEMODULATOR oscillator inside control loop brings sound back to audio range
• CV applies external voltage control to oscillators or uses input signal as audio rate FM
• Internal oscillators can be replaced with external modulation sources
• TYPE selects demodulation loop type (changes timbre and response)
• ERROR output with threshold control
• TONE control for filtering out the harshest of frequencies
• All analog design
• 14 HP
• Power requirements :+12V 40mA, -12V 30mA
