LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It’s much more than a delay – you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality – no SMD, no twisted plastic shafts, no crappy parts.

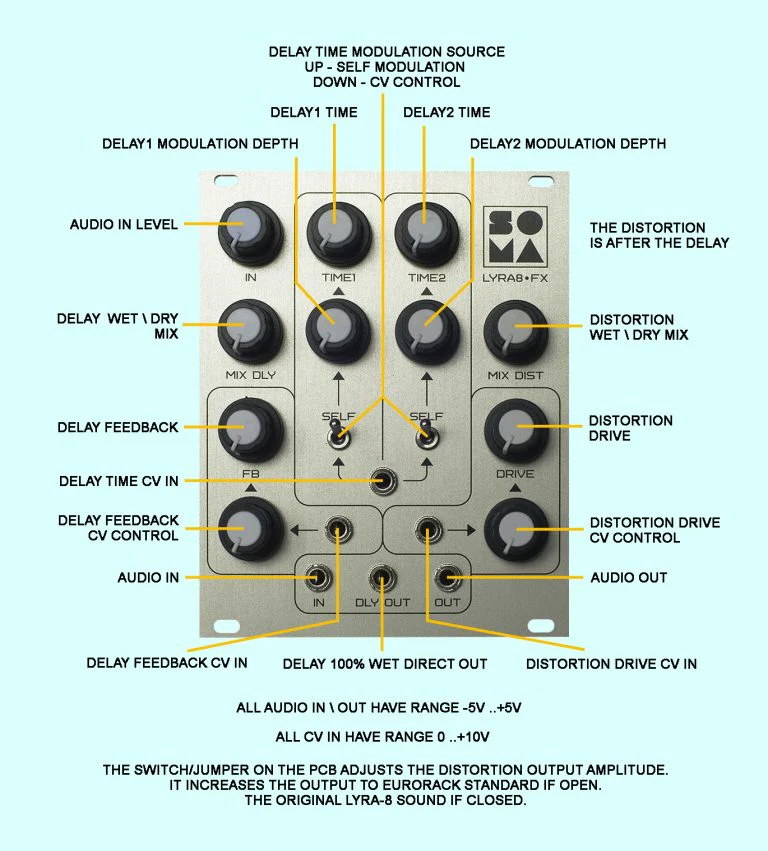

Pots:

• IN volume
• Stage 1 delay time
• Stage 2 delay time
• Stage 1 delay time modulation depth
• Stage 2 delay time modulation depth
• Delay feedback
• Delay feedback CV amount
• Delay mix
• Distortion drive
• Distortion mix
• Distortion drive CV amount

Switches:

• Stage 1 delay time modulation source
• Stage 2 delay time modulation source

Ins:

• Audio in
• Delay time CV
• Delay feedback CV
• Distortion drive CV

Outs:

• Main audio out
• Delay only out
